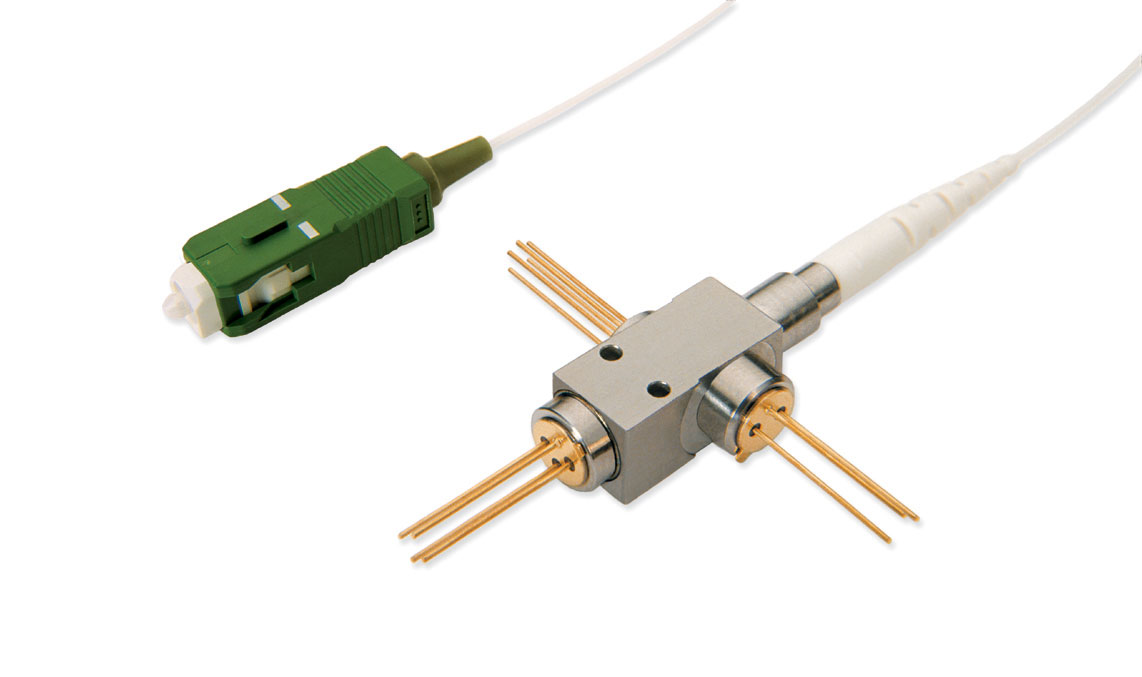

PON BIDI-VLSC™

High Power Bi-Directional Optical Component with Visible Light Service Channel

1310nm Tx 1.25Gbps / 1490nm PD Rx with 1.25 Gbps 3.3V TIA with integrated Red Light FP Laser 650nm

Product overview

The PON BIDI-VLSCTM is an optical component designed for full-duplex digital communication over a single fiber with an additional service channel integrated into BIDI optical unit. Visible light laser transmitter for laser beam positioning in Bi-directional Gigabit optical wireless communications.

The single fiber concept saves overall system costs by eliminating one fiber, allowing for doubling of capacity without installing new fibers, and simplifying fiber management.



Features

• Integrated WDM filters for Tx/Tx/Rx operation at 650/1310/1490nm
• 1310 nm FP laser diode transmitter suitable for data rates up to 1.25 Gbit/s
• 1490 nm PD digital receiver with integrated 1.25 Gbit/s, 3.3 V TIA
• 650 nm Laser Diode for Optical Wireless Network
• -40° C to +85 °C operating temperature range
• Single-mode fiber pigtail with different connector options
• Class 3B laser product
• Hermetically sealed Tx and Rx sub-components for high reliability



General Applications

• High-speed indoor Wireless optical infrastructure
• Open-air optical or fibreless optical transmission, LiFi over air
